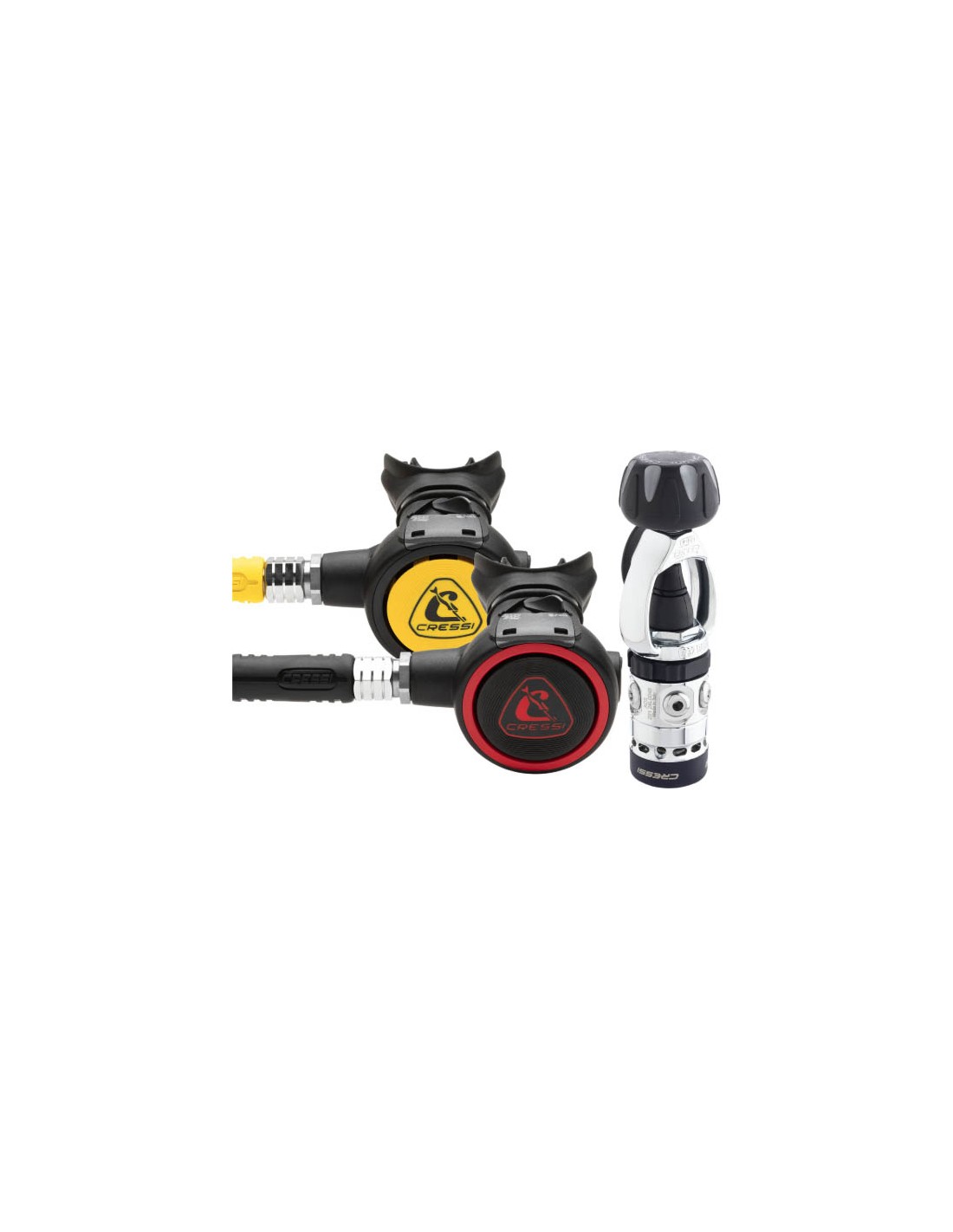

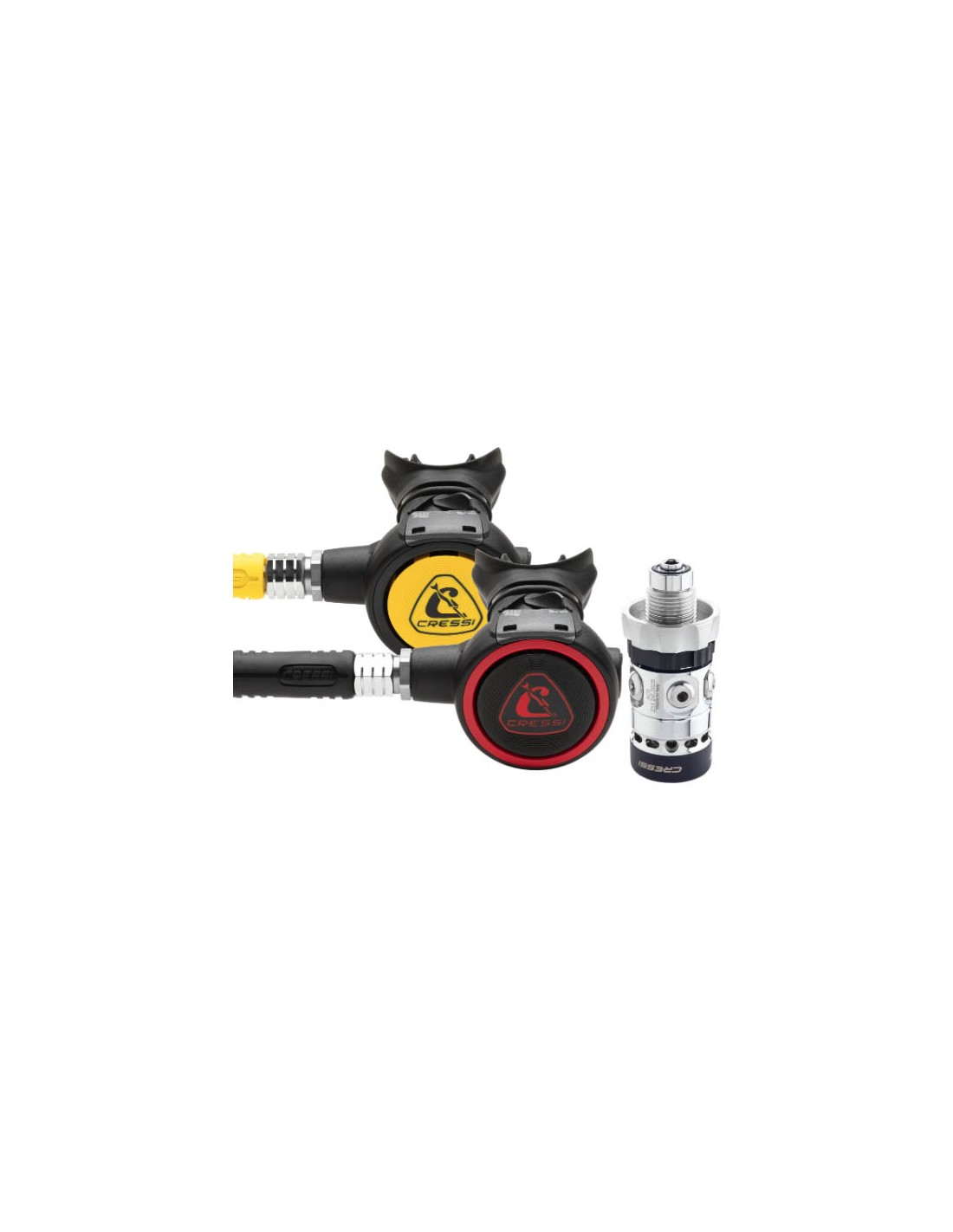

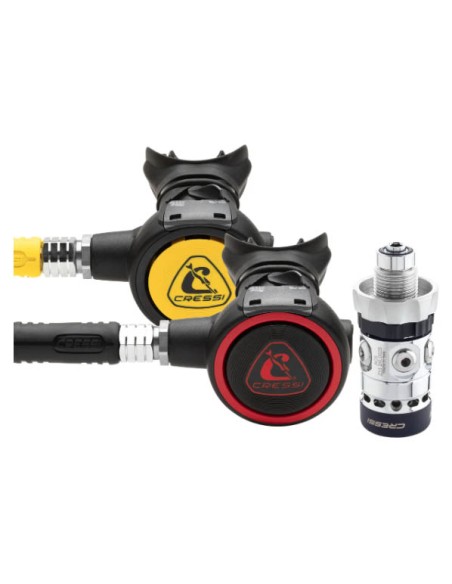

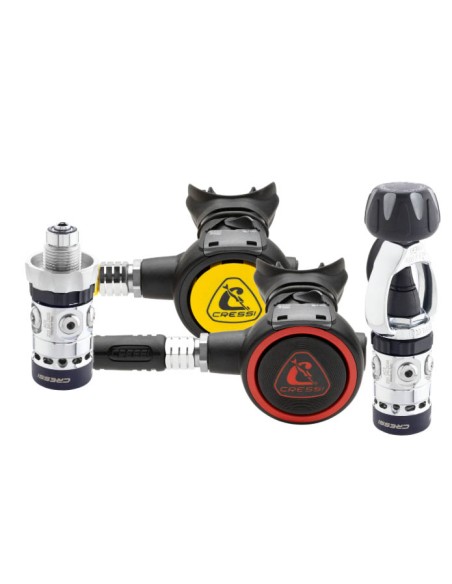

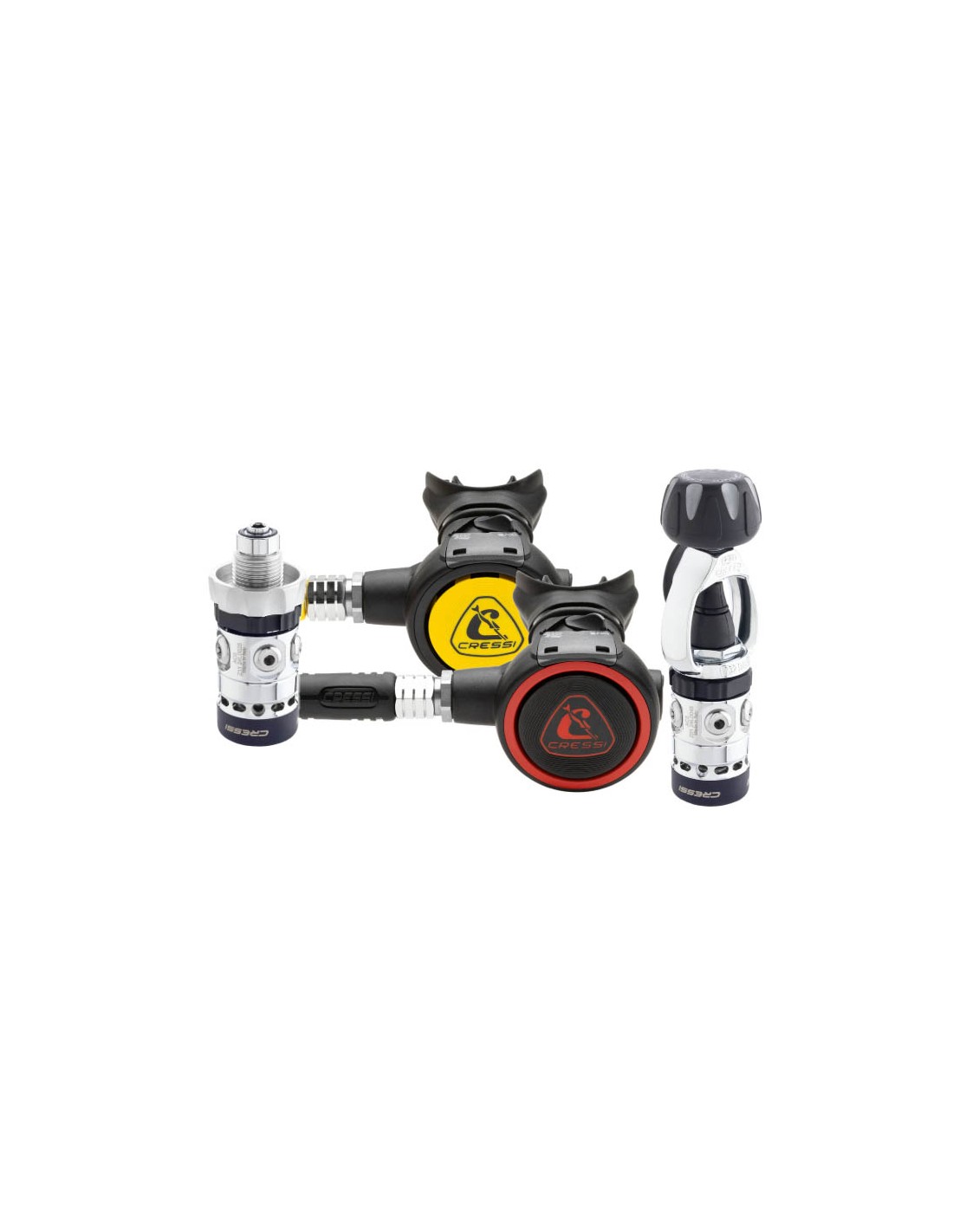

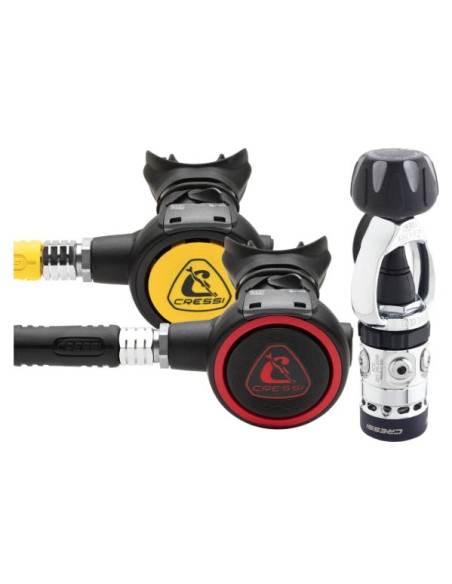

Cressi ZEN Set AC5 + Octopus ZEN

TECHNICAL FEATURES 1ST STAGE

• New piston 1st stage with INT or DIN 300bar connection.

• 4 L.P. ports, 1 HP port for optimal hose orientation.

• Direct external IP calibration system for precise pressure adjustment.

• IP calibration value: 9.5-10bar for consistent performance.

• New optimized 1st stage design for maximum flow.

• Conical filter for improved filtration in both versions.

• Single maintenance kit for both INT and DIN versions.

• Increased water passage slots for better pressure balance.

• Enlarged tool housing holes for easier servicing.

• CE EN250 certification pending for warm water use.

• Glossy finish with “Gun Metal” DIN wheel.

• Interchangeable parts with AC25 and AC2 models.

• Weight, INT version: 670g

• Weight, DIN version: 495g

TECHNICAL FEATURES 2ND STAGE AND OCTOPUS

• Downstream system

• Adjustable Venturi effect

• Patented antifriction lever

• Dual-injection, enlarged purge button

• Radial pressure transmission openings

• Anti-scratch surface

• Bayonet-type cap holder with security lock

• Removable exhaust tee without tools

• Weight without hose: 149 g
