OMS P-Valve Raw Spare Parts

Spare parts for the Pee-Valve OMS.

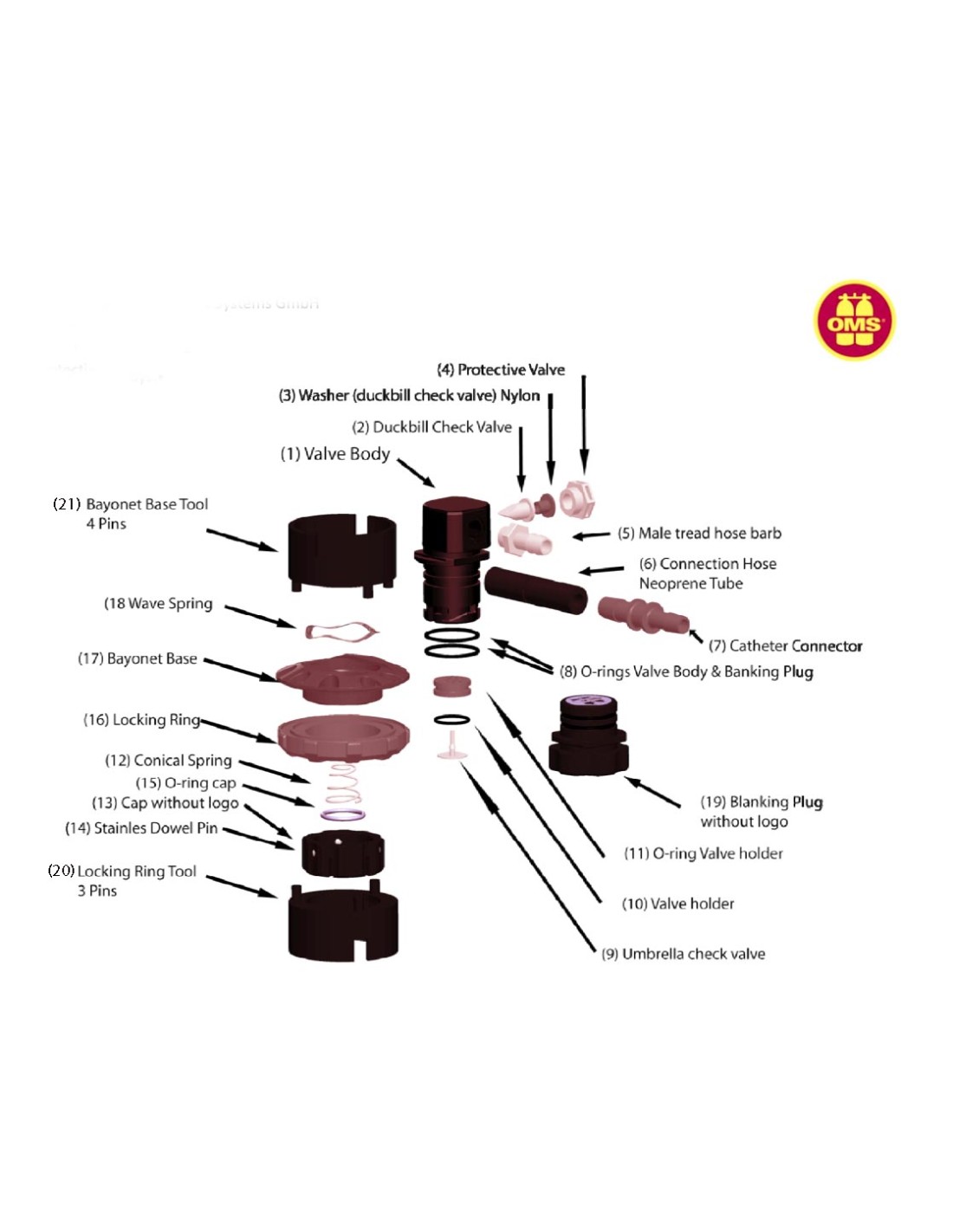

Look carefully at the diagram and choose the part according to its numbering in the drop-down menu

1: Valve body

2: Duckbill check valve

3: Washer (duckbill check valve) Nylon FG black

4: Protection valve

5: Male thread pipe fitting barb hose tail connector with O-ring

6: Neoprene Tube A-60-G

7: Double hose connector

8: O-ring (Basic body/Blind plug)

9: Umbrella check valve

10: Valve holder (umbrella check valve)

11: O-Ring (Valve holder)

12: Conical spring

13: Cap W/O Logo

14: Stainless steel dowel pin

15: O-Ring (Cap)

16: Lockring Ring

17: Bayonet base

18: Wave spring washer

19: Blind Plug w/o Logo

20: Fixture for locking ring (3 pins)

21: Fixture for Bayonet (4 pins)
