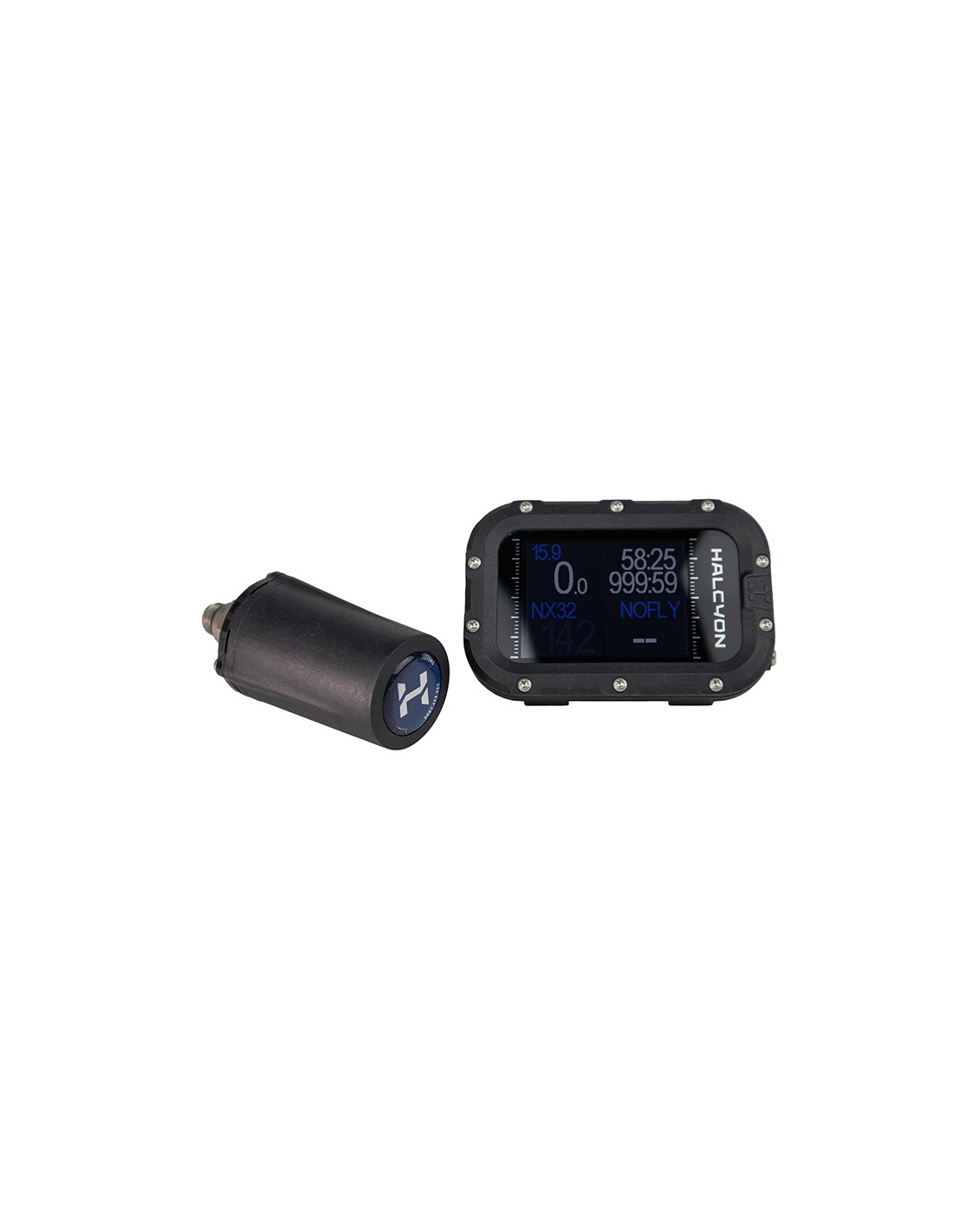

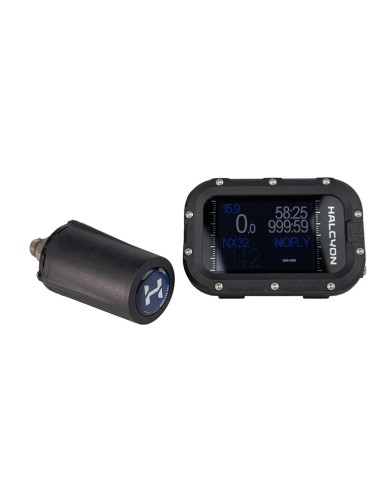

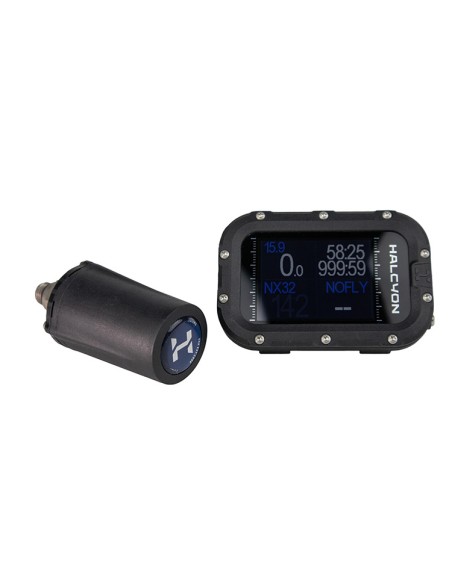

Halcyon Symbios Handset + Tank-Pod

The Halcyon Symbios Handset Dive Computer and tank POD deliver exceptional power and functionality in a compact, slim, user-friendly design with air integration. The Symbios will work up to 9 tank PODs!

The Symbios Handset, similar to the Symbios HUD, is the core of Halcyon’s Symbios Technology, an ecosystem designed to enhance your diving experience with advanced features and prepare you for today’s adventures and tomorrow’s challenges.

The Symbios is a multi-gas dive computer utilising the ZHL16-C algorithm with adjustable gradient factors, accommodating up to five gases for Open Circuit diving, fixed or integrated CCR, Integrated Sidemount, and Gauge modes.

Depth-rated to 120 metres, the Symbios operates on a rechargeable Li-ion battery, providing up to 30 hours of runtime with five brightness levels. The unit also displays the normal maximum average for any dive, CO2 levels, and the CNS and OTO accumulations, along with the gradient factor.

Eco-Conscious and Efficient

• Rechargeable Battery: Simple to recharge, the battery is designed to minimize environmental impact and provide long-lasting power.

Cutting-Edge Connectivity

• Integrated Ecosystem: The handset connects seamlessly to a growing suite of devices, providing real-time data
• on diver orientation, gas levels, oxygen supply, and more.
• Buddy Sharing: The buddy-screen feature allows for easy data sharing with fellow divers, enhancing safety
• and collaboration underwater.

State-of-the-Art Display

• Hybrid Transflective Color Screen: The display offers excellent visibility in all lighting conditions with minimal power consumption.
• Ambient Light Enhancement: The screen reflects ambient light to improve clarity and allow visibility even with the backlight off; it performs exceptionally well in direct sunlight.
• Customizable Display: Adapt the screen to your environment with options like a large-format display for enhanced readability.

Comprehensive App Support

• Community-Driven App: Gain unparalleled control over your device with an app supported by a vibrant user community.
• Share and Grow: Dive deeper into your experiences by sharing profiles and tips, all while benefiting from regular app-based firmware updates.
• Tailored Experience: Customize settings based on your user profile, manage gas libraries, and receive personalized support through an integrated chat feature.
• Dry-Dive Capability: Test and simulate dives in real-time with your Symbios Handset / HUD before entering the water.

Seamless Rebreather Integration

• Wireless Compatibility: Effortlessly connects with the Halcyon Symbios Rebreather and is future-ready for wireless integration with an expanding range of rebreathers.

Sophisticated Wireless Technology

• With industry-leading wireless technology, the Symprosis dive computer can receive wide-ranging data from up to 9 transmitters, including sources such as RB, DPV, HP, GPS/ Positioning systems, Trim, and more.
• From the Symbios Tank POD: Diver orientation (trim position) and gas pressure
• From Symbios connected CCRs: Oxygen Levels (PO2 on three cells). Battery charge state, CO2, scrubber temperature, and more
• From Symbios Enabled Products: Diver location from Symbios GPS POD
• DPV of other device battery levels Runtime, remaining time, battery health personal performance and/or biometric data

The handset uses "checksums" to isolate the potential for corrupt data. Symbios Technology reduces risk even compared to wired connections, where a corroded wire with high resistance sends compromised data.

The Symbios handset also gives you seamless rebreather integration. It effortlessly connects with the Halcyon Symbios Rebreather and is future-ready for wireless integration with an expanding range of rebreathers.

The set fulfils all EMC requirements and is FCC and CE compliant.

Moreover, with the Symbios, you can even monitor your dive buddy's rebreather data or other available parameters, such as gas supply for paired transmitters.

Symbios Handset Key Features:

• Best Suited For: Active divers looking for a future-proof scalable device
• Highlights: Industry-leading, wireless technology receives wide-ranging data sources from RB, DPV, HP, GPS/ Positioning systems, Trim and more. Vibration, alerts, rechargeable battery.
• Dive Modes: Multi-gas, OC, fixed or integrated CCR, Integrated Sidemount, Gauge, Buddy Screen, Large-format screen options.
• Number of Gases: 5 OC/CC
• Algorithm: ZHL16-C
• Screen Resolution: 320 x 240
• Display Type: Transflective full colour display
• Display Size: 2.4”
• Battery Type: Rechargeable Li-ion Battery
• Battery Life: Up to 30 Hours with 5 Brightness levels
• Dive Log Capacity: 5s rate 1000h
• Depth Rating: 120m
• Alerts: Vibration
• Air Integration: Tank Pod with built-in trim sensor
• Number of Transmitters: Up to 9
• Bluetooth: Yes
• Interface: 2 Tactile response buttons
• Compass: 3-Axis, tilt-compensated, digital and rose formats
• NDL Planner: No
• Deco Planner: No
• Firmware Updates: Yes
• Current Languages: English, German, Korean, Chinese
• Wrist Strap: Blue bungee kit

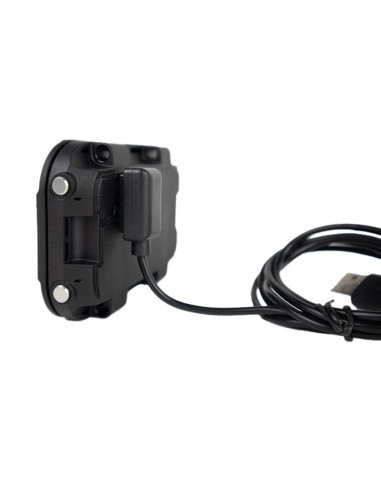

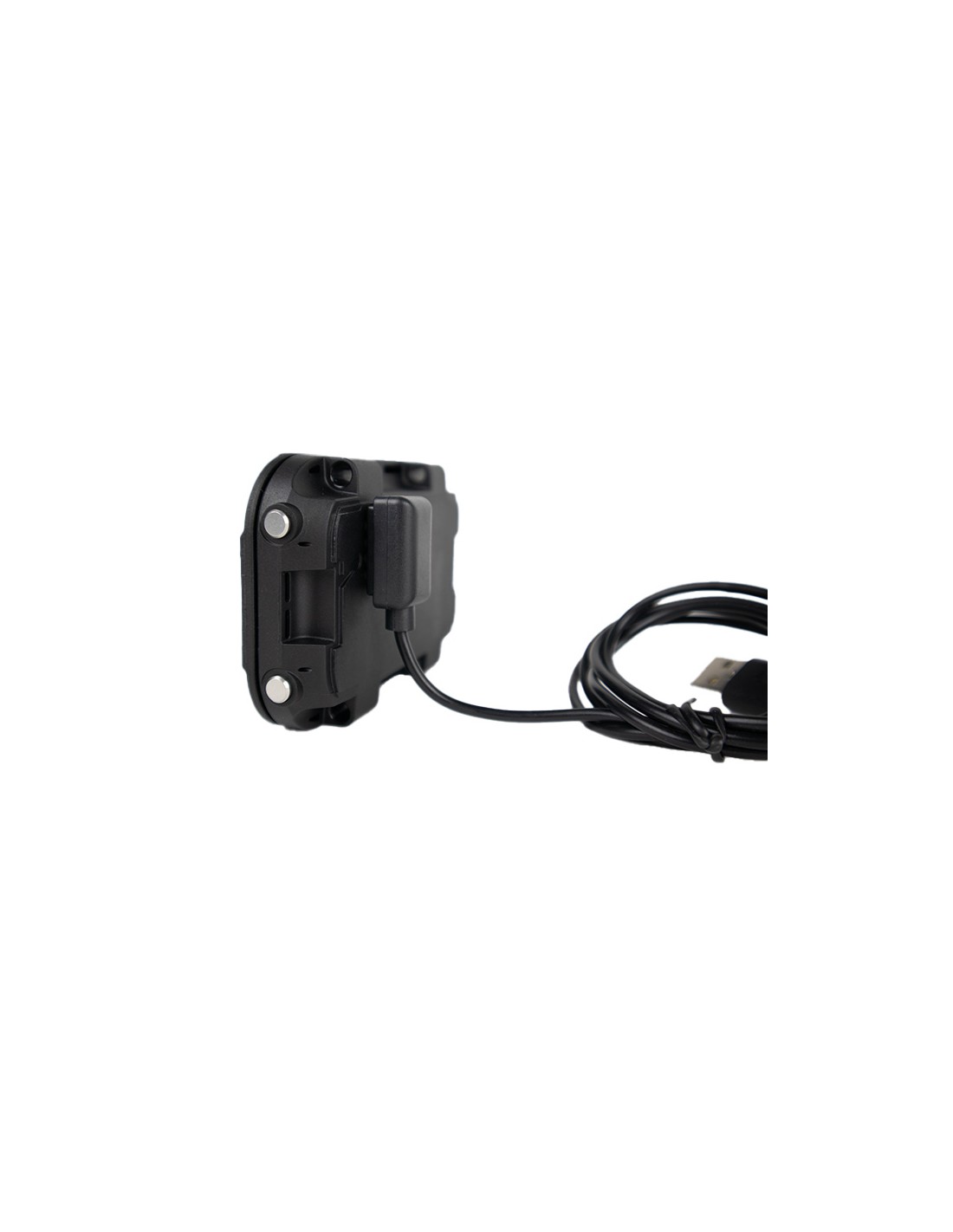

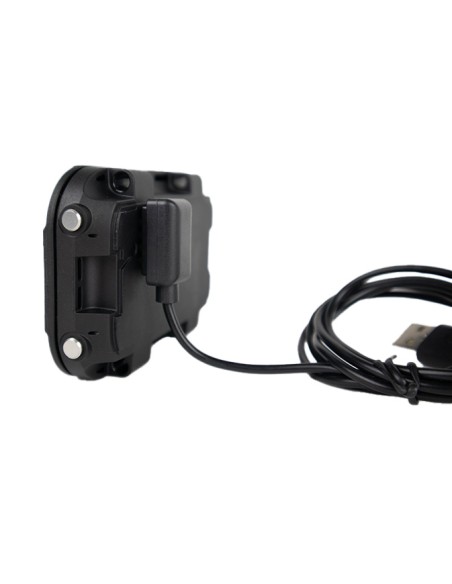

• Accessories: Charging cable
• Dimensions: 94.4x63x19.8 mm3

The Halcyon Tank Pod is not only a wireless tank pressure transmitter, but also contains advanced positioning technology, allowing you to receive real-time information about your trim position in the water. The Tank Pod may be used on any first stage to transmit tank pressure and/or trim position to your Halcyon Symbios computer. Using a Halcyon Symbios computer you can also read the pressure of nearby dive buddies. When not using the trim position feature, you can easily rotate the battery, and the unit will only transmit tank pressure data.

Key Features

• Accurate tank pressure reading
• Precise diver trim position
• Easy pairing
• Cleaned for oxygen service
• Visual and vibratory alarms for low tank pressure
• Integration into a Halcyon app ecosystem
• No limit to the Halcyon devices that can receive pressure/trim position
