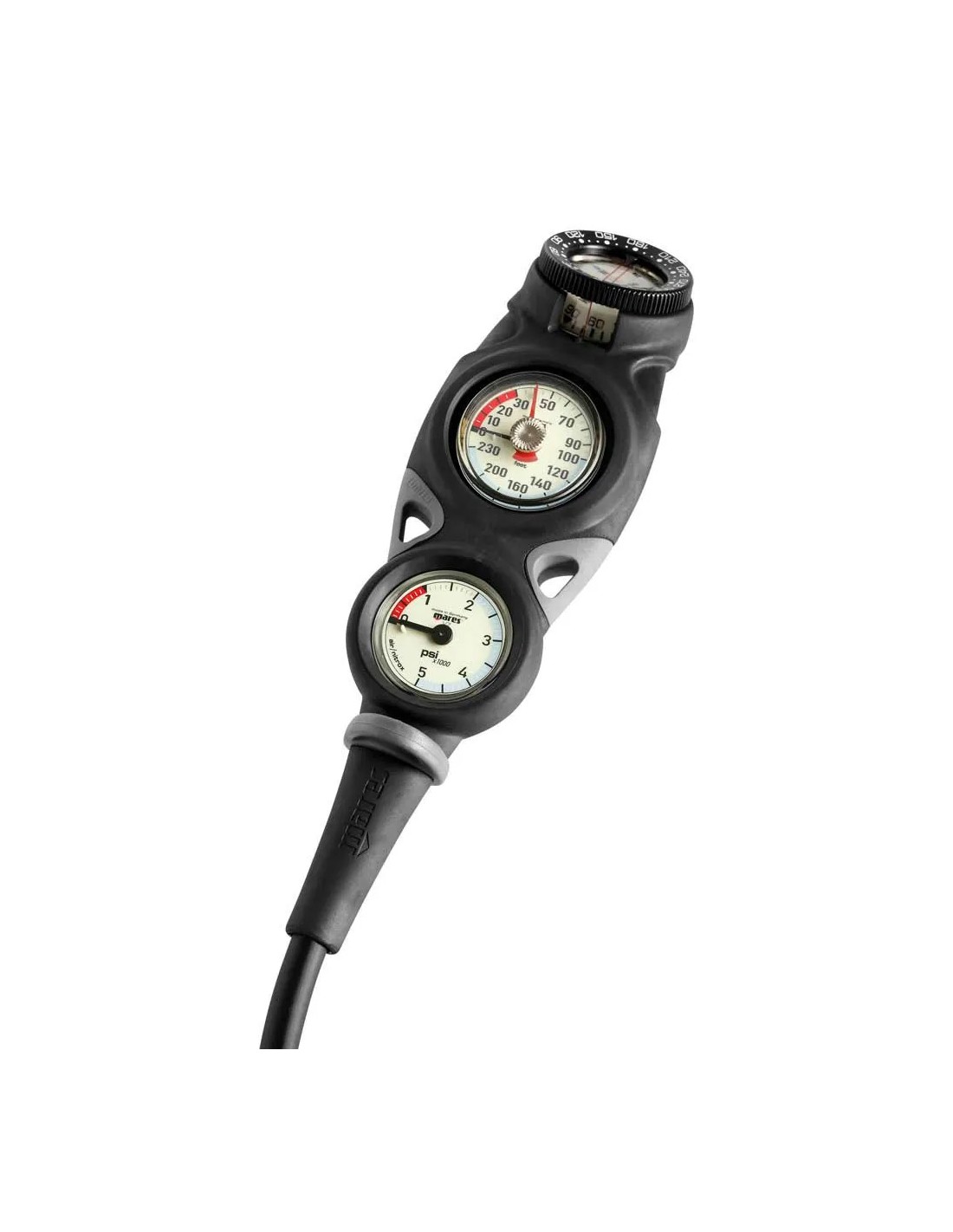

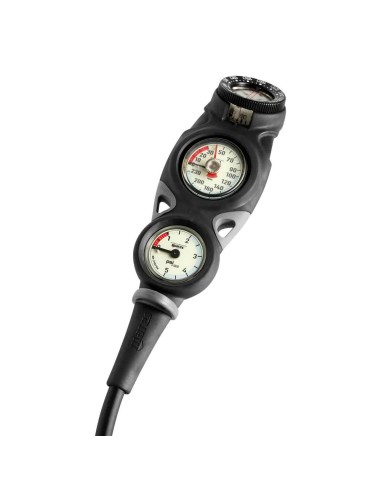

Mares Mission 3 (PSI-Feet)

Pressure gauge has 0 to 5000 PSI bars readout with a safety reserve 1000 PSI color coded in red to allow the diver to know that they are low on air. The pressure gauges 7/16″ UNF neoprene jacket double braided high-pressure hose has a 360 Degree swivel and is 90cm (36″) long.

This very accurate oil filled depth gauge reads depth from 0 to 60m and comes equipped with a maximum depth indicator needle (MDIN). The MDIN is pushed by the gauge depth needle until the diver meets their maximum depth. The MDNI will remain at the maximum depth reached for the duration of the dive to indicate the diver’s deepest depth reached during the dive. This feature allows the diver to not record that depth while diving, yet will be available upon surfacing for later calculations for repetitive dives. Depth Gauge is color coded for easy and safe reading at a glance. Depth Gauge has a 0 to 60m readout with a safety red color-coded section from 0 to 10m. The 30m to full scale are color coded in blue.

The compass is oil filled for a quick and responsive movement. Dual magnets give faster response and with a maximum working tilt angle of 20 Degree ensures accurate compass headings. A ratchet bezel with compass headings in 10 Degree indicator marks and 30 Degree numerical readings. Bezel has twin heading indicators for alignment of compass course, and a double lined lubber line across the compass face. A side window with compass degrees allows gun-sight accurate use when precise headings are required. Compass card is luminescent for low light conditions. The impact-resistant boot has multiple eyelets for attachment of clips or lanyards to keep the gauge close at hand and from dragging over the environment. All current in line Mares Instruments are compatible up to 40% Oxygen (EAN 40) right out of the box.

Mares Mission 3 Gauge Console:

• Completer Pressure, Depth & Navigation Instrument Console
• Nitrox Ready to 40% Oxygen Out-of-the-Box
• Luminescent Faces for Easy Reading in Low Light or Night Diving Conditions
• Impact-Resistant Elastomer Boot
• Multiple Eyelets for Attachment of Clips or Lanyards
• 360 Degree swivel & 90cm (36″) HP Hose
• Hose: 7/16″ UNF Neoprene Jacket Double Braided

• Pressure Gauge:
• Compact Lightweight Ergonomic Design
• Durable Brass Case w/Techno Polymer Lens
• Color Coded for Safe Air Reserve
• Readout: 0 to 5000 PSI
• 0 to 1000 PSI Color Coded in Red

• Depth Gauges:
• 0 to 230 feet Read Out
• Max-Depth Indicator Needle (MDIN)
• MDIN: Extremely Handy for Logging Dive Information
• Follows Depth Needle to Deepest Point Reached on Dive
• Marks Maximum Depth Reached
• High Accuracy and Reliability
• Color Coded: 0 to 10m Red Denoting Range of Safety/Deco Stops

• Compass:
• Oil Filled
• Top & Side Reading
• Designed for Excellent Navigation
• Maximum Tilt 20 Degree
• Dual Magnets
• 360 Degree Ratchet Bezel
• Headings in Numerical 30 Degree Increments & 10 Degree Indicator Increments
• Twin Heading Indicators
• Double Line Lubber Line
• Luminescent Dial
• Shock Resistant Elastomer Boot
• Gun-Sight Accurate Navigation
